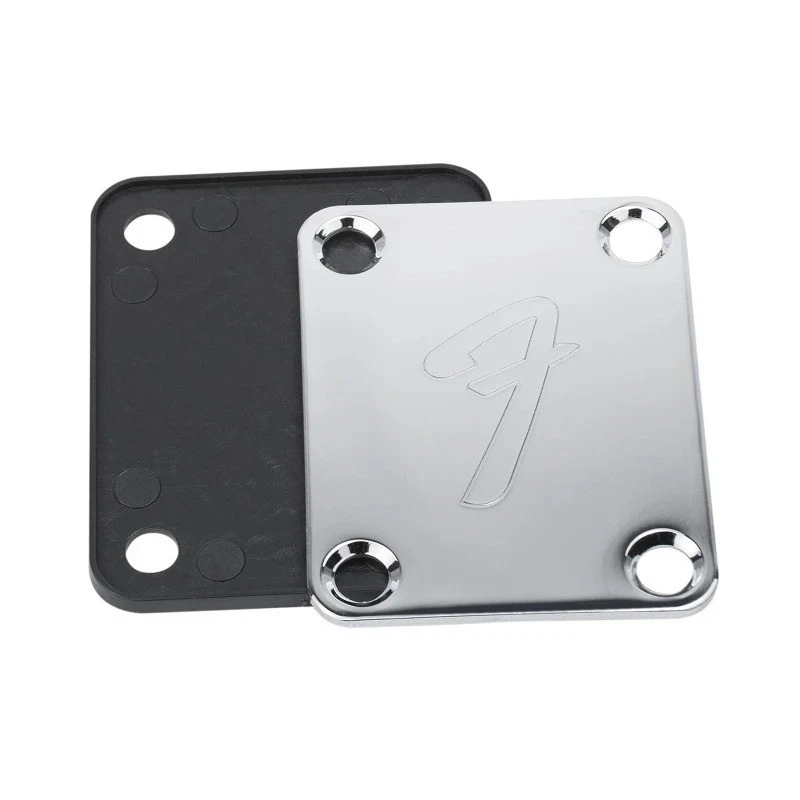

Vintage “F” Logo 4-Bolt Neck Plate for Strat, Tele & Bass UK

Vintage “F” Logo 4-Bolt Guitar Neck Plate – Strat, Tele & Bass Replacement with Screws UK

Restore, customise or refresh your electric guitar with this Vintage “F” Logo 4-Bolt Neck Plate, designed for compatible Stratocaster-style, Telecaster-style and bass guitars using a traditional four-screw bolt-on neck system.

The neck plate sits on the rear of the guitar body and spreads the pressure from the mounting screws across a wider area, helping provide a secure and tidy connection between the neck and body.

With its vintage-inspired chrome finish and engraved-style “F” logo, this replacement plate is ideal for guitar restoration projects, custom builds and replacing scratched, worn or damaged neck hardware.

Fender’s current official 1970s-style version also uses a four-bolt design with an engraved “F” logo and is intended for most Fender guitars and basses that use four-screw neck mounting without Micro-Tilt adjustment.

Key Features

• Vintage-style guitar neck plate
• Classic “F” logo design
• 4-bolt mounting pattern
• Suitable for compatible Strat-style guitars
• Suitable for compatible Tele-style guitars
• Can fit selected electric bass guitars
• Designed for bolt-on neck systems
• Helps distribute screw pressure across the body
• Ideal replacement for scratched or damaged plates
• Useful for guitar restoration and custom builds
• Chrome-style metal finish
• Supplied with mounting screws where included
• Simple replacement with basic guitar tools
• Suitable for workshop and DIY guitar projects
• Clean vintage appearance

Product Specifications

Product Type: Guitar / Bass Neck Plate
Style: Vintage “F” Logo
Mounting: 4-Bolt / 4-Screw
Material: Metal / Steel depending on supplier specification
Finish: Chrome / Chrome-Style
Shape: Rectangular
Compatible Instruments: Selected Stratocaster-Style / Telecaster-Style / Bass Guitars
Typical Plate Size: Approx. 63.5–65mm × 50.8–51mm
Typical Hole Spacing: Approx. 50.8–51.3mm × 38mm
Screws: Usually 4 included depending on supplied set
Typical Screw Length: Approx. 40–45mm depending on version
Installation: Rear Neck Joint
Micro-Tilt Compatibility: Usually not intended for Micro-Tilt-equipped systems unless specifically designed for them

Genuine Fender’s current F-logo version measures around 63.5 × 50.8mm, with mounting-hole spacing of approximately 50.8 × 38.1mm and four 44.45mm screws. A current UK-compatible aftermarket plate is similarly sized at 64 × 51mm with approximately 51.3 × 38mm hole spacing.

Why Choose This Vintage “F” Logo Neck Plate?

Ideal for Guitar Restoration

Older guitars can develop:

• Scratched neck plates
• Tarnished hardware
• Worn screw heads
• Damaged mounting hardware
• Mismatched replacement parts

Replacing the neck plate can instantly improve the appearance of the back of the guitar while maintaining the traditional bolt-on neck layout.

Vintage-Inspired “F” Logo

The engraved-style “F” design gives the plate a classic 1970s-inspired appearance.

Fender currently sells an official version specifically described as a 1970s vintage-style neck plate with engraved F logo.

For third-party products, describe yours as:

Vintage F-logo style neck plate compatible with selected Fender-style guitars

rather than calling it genuine Fender unless authenticity is confirmed.

Compatible with Many Strat & Tele Style Guitars

The standard rectangular 4-bolt pattern is widely used on Stratocaster- and Telecaster-style instruments.

Current UK aftermarket plates using approximately 51 × 38mm hole spacing are sold as compatible with many USA, Mexican and Squier-style Fender instruments.

Compatibility still needs to be checked before ordering.

Suitable for Selected Bass Guitars

Four-bolt Fender-style neck plates are also used on many bass guitars.

Fender’s own F-logo neck plate is marketed for most compatible Fender guitars and basses using four-screw neck mounting without Micro-Tilt.

Helps Support the Neck Joint

The neck plate spreads the clamping force from the mounting screws over a wider area on the rear of the guitar body.

This helps reduce concentrated pressure from the screw heads and provides a neat mounting surface for the bolt-on neck joint.

Complete Replacement Hardware

Where your supplied version includes four screws, it can replace both the existing neck plate and worn mounting hardware at the same time.

Fender’s current genuine neck-mounting screws are commonly #8 × 1-3/4 inch Phillips-head screws, while aftermarket metric-style versions may differ.

Always use screws that match your actual guitar.

Compatible Guitar Styles

This neck plate may be suitable for:

Stratocaster-Style Guitars

Many traditional Strat-style guitars use a rectangular 4-bolt neck plate.

Telecaster-Style Guitars

Many Tele-style bolt-on guitars use the same basic four-screw neck mounting layout.

Electric Bass Guitars

Selected bass guitars with traditional Fender-style bolt-on neck joints may also use this plate.

Custom Guitar Builds

It can also be useful for DIY builds using compatible neck pockets and screw spacing.

Important Compatibility Information

Do not assume this plate fits every Fender, Strat, Tele or bass guitar.

Before ordering, measure:

• Plate length
• Plate width
• Horizontal hole spacing
• Vertical hole spacing
• Screw diameter
• Screw length

A common compatible pattern is approximately:

Plate: 64 × 51mm
Hole spacing: 51 × 38mm

Current UK aftermarket parts use almost exactly these dimensions.

Micro-Tilt Compatibility

This point is important.

Fender’s official vintage-style F-logo neck plate is intended for instruments using four-screw neck mounting without Micro-Tilt adjustment.

If your guitar has a Micro-Tilt system or access hole in the neck plate, check whether this replacement plate supports it before purchasing.

Typical Dimensions

Comparable neck plates are approximately:

• Length: 63.5–65mm
• Width: 50.8–51mm
• Vertical hole spacing: about 50.8–51.3mm
• Horizontal hole spacing: about 38mm

Exact dimensions of your supplied product should be used in the final variation table.

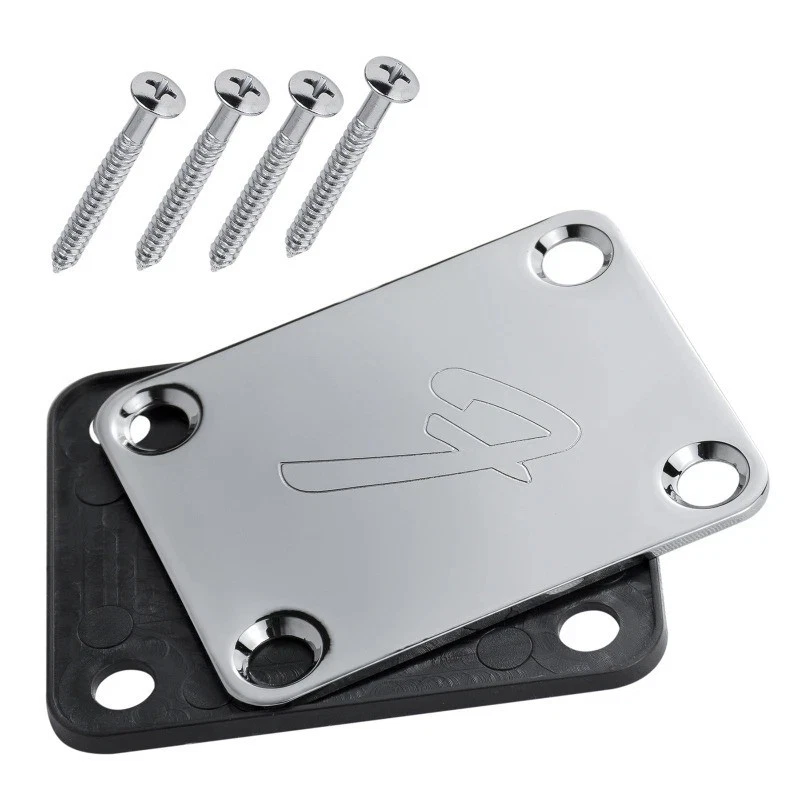

Included Screws

Where included, the pack commonly contains:

• 1 x Neck Plate
• 4 x Neck Mounting Screws

Fender’s genuine F-logo plate includes four mounting screws, while current UK compatible plates also commonly include colour-matched screws.

Screw Size Information

Different instruments may use slightly different screws.

Examples include:

Genuine Fender:
#8 × 1-3/4 inch Phillips-head neck screws.

Current UK aftermarket compatible plate:
Approximately 4–4.2mm thread diameter and around 40–45mm length depending on measurement method.

Never force an incorrect screw into the guitar body or neck.

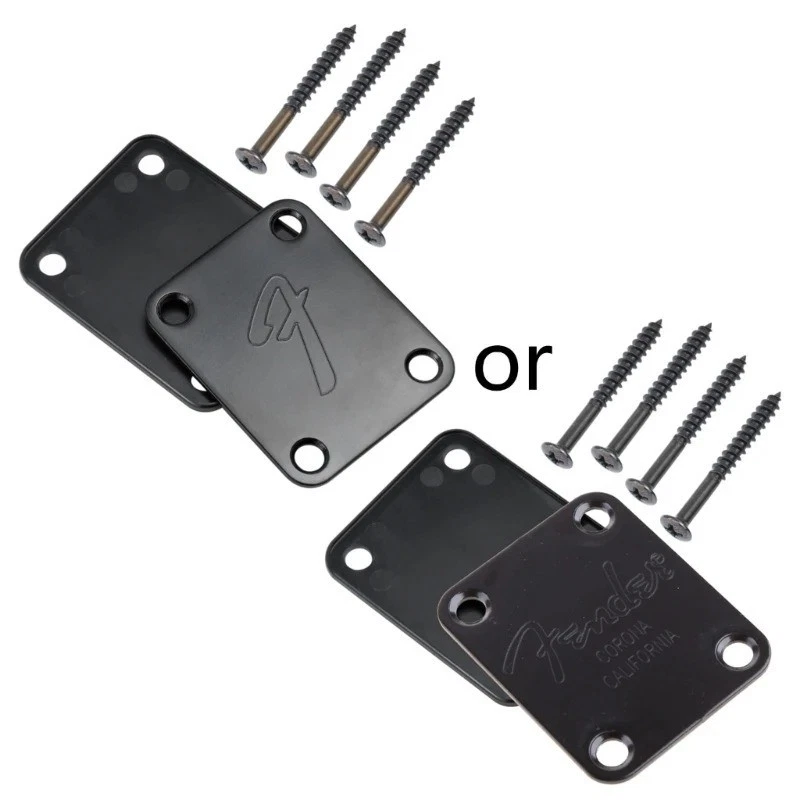

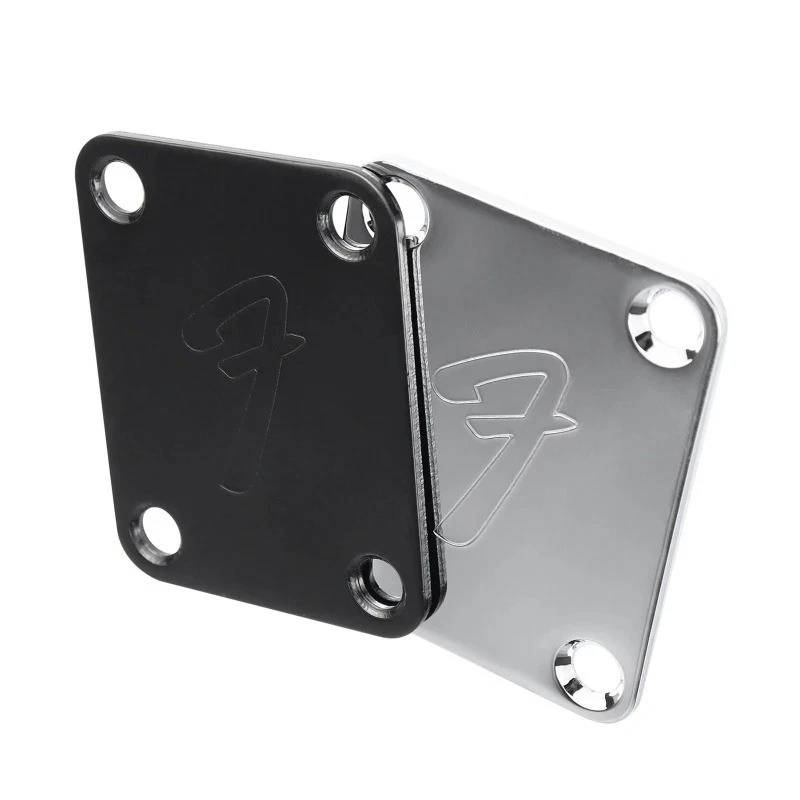

Available Finishes

This product does not have flavours.

The correct variation is Available Finishes / Colours.

Common options in this product category include:

• Chrome
• Nickel
• Black
• Gold

Current UK Strat/Tele-compatible neck plates are available in all four of these finishes.

Only list finishes actually available in your stock.

How to Measure Your Existing Neck Plate

Step 1 – Measure Overall Length

Measure from top edge to bottom edge.

Step 2 – Measure Width

Measure from side to side.

Step 3 – Measure Hole Centres

Measure from the centre of one screw hole to the centre of the next.

Step 4 – Check Screw Length

Compare your original screws with the supplied replacements.

Step 5 – Check for Micro-Tilt

Look for any additional adjustment opening in the existing neck plate.

How to Install

Step 1 – Support the Guitar

Place the guitar face down on a clean padded work surface.

Step 2 – Reduce String Tension

Loosen the strings before disturbing the neck joint.

Step 3 – Support the Neck

Keep the neck supported so it does not move suddenly when the screws are removed.

Step 4 – Remove the Old Screws

Undo the four neck screws gradually.

Avoid removing one screw completely while the others remain fully tightened.

Step 5 – Remove the Existing Plate

Lift away the old plate.

Step 6 – Position the Replacement

Align the four mounting holes.

Step 7 – Reinstall the Screws

Start each screw carefully by hand.

Step 8 – Tighten Evenly

Tighten in stages using a cross-pattern.

Do not overtighten.

Step 9 – Check Neck Alignment

Make sure the neck remains correctly seated in the pocket before returning the instrument to normal use.

Avoid Overtightening

Excessive screw torque can potentially:

• Strip wood threads
• Damage the neck pocket
• Deform hardware
• Crack some guitar finishes
• Damage the neck heel

Tighten only enough to achieve a secure neck joint.

If you are unsure, use a professional guitar technician or luthier.

Ideal for Custom Guitar Builds

The plate is also useful for DIY guitar builders working with:

• Replacement bodies
• Replacement necks
• Partscaster projects
• Custom Strat-style guitars
• Custom Tele-style guitars
• Bass projects

Always drill and prepare neck mounting holes correctly rather than using the plate itself as a guide without proper alignment.

Replacement vs Genuine Fender Part

If your stock is not supplied directly as genuine Fender hardware, make this clear in the listing.

Recommended wording:

Compatible aftermarket replacement part for selected Fender-style guitars and basses.

Do not use:

Genuine Fender neck plate

unless you have verified branded packaging and supplier authenticity.

What’s Included?

Each order typically includes:

• 1 x Vintage F-Logo Style Neck Plate
• 4 x Mounting Screws

Exact package contents depend on your supplier.

Guitar, neck, body and additional tools are not included.

Care & Maintenance

To keep the plate looking clean:

• Wipe gently with a dry microfibre cloth.
• Remove fingerprints after handling.
• Avoid aggressive metal polish.
• Keep corrosive chemicals away.
• Check mounting screws periodically.
• Do not allow moisture to remain underneath the plate.

Chrome finishes may eventually show normal wear depending on use and storage.

Safety Information

• Confirm dimensions before installation.
• Use only on compatible bolt-on guitar neck systems.
• Support the neck before removing mounting screws.
• Loosen string tension before removing the neck.
• Never force an incorrectly sized screw.
• Do not overtighten the mounting screws.
• Check neck alignment after installation.
• Stop if screw holes appear stripped or damaged.
• Keep screws and small hardware away from young children.
• Use appropriate eye protection if drilling or modifying a custom guitar body.
• Installation errors can damage the neck, body or finish.
• Seek assistance from a guitar technician if you are unsure.

Frequently Asked Questions

What is a guitar neck plate?

A neck plate is a metal plate mounted on the back of many bolt-on electric guitars.

The neck mounting screws pass through it into the neck heel.

Does this have an F logo?

Yes, this listing is for a vintage-style “F” logo neck plate.

Is this a genuine Fender part?

Only describe it as genuine Fender if your supplier confirms authentic Fender manufacture and packaging.

Otherwise, sell it as a Fender-style compatible aftermarket part.

Does it fit Stratocaster guitars?

It can fit many Stratocaster-style guitars that use the compatible four-bolt mounting pattern.

Does it fit Telecaster guitars?

Yes, many Telecaster-style guitars use the same traditional four-bolt neck plate dimensions.

Does it fit bass guitars?

It can fit selected bass guitars using the same compatible four-screw mounting layout.

Fender’s own F-logo version is designed for compatible guitars and basses.

What size is the plate?

A typical Fender-style plate is around 64 × 51mm.

Genuine Fender’s F-logo version is approximately 63.5 × 50.8mm.

What is the mounting-hole spacing?

A common pattern is approximately:

• 51mm vertically
• 38mm horizontally

Are screws included?

They are commonly included with this product type.

Fender’s genuine F-logo plate includes mounting screws.

Confirm your exact package before publishing.

What length are Fender neck screws?

Fender currently specifies its standard neck-mounting screws as #8 × 1-3/4 inches.

Third-party metric-compatible screws may differ slightly.

Can I use my original screws?

Yes, provided they are undamaged and correctly sized.

Does it fit Squier guitars?

Some aftermarket Fender-dimension plates are sold as compatible with Squier models, but exact hole spacing should always be checked first.

Does it fit Mexican Fender guitars?

Many standard four-bolt Fender-style plates fit Mexican-made models.

Fender’s plain vintage neck plate is officially listed for most USA- and Mexico-made guitars and basses using four-screw mounting without Micro-Tilt.

Does it fit USA Fender guitars?

It may fit compatible USA models using the standard 4-bolt layout.

Always measure before ordering.

Is it compatible with Micro-Tilt?

Usually not.

Fender specifically states that its vintage F-logo neck plate is intended for four-screw instruments without Micro-Tilt adjustment.

Can I install it myself?

Yes, if you are confident working on bolt-on guitar necks.

Otherwise, a guitar technician can install it safely.

Do I need to remove the guitar neck?

The mounting screws need to be loosened or removed to replace the plate, so the neck joint must be supported carefully during installation.

Can I use it on a custom guitar?

Yes, provided the body and neck use compatible dimensions and mounting-hole spacing.

Does the neck plate affect tone?

Its primary role is mechanical mounting and load distribution.

Avoid making guaranteed tone or sustain improvement claims.

What finish is available?

Chrome is the traditional vintage-style option.

Black, gold or nickel may also exist depending on stock.
